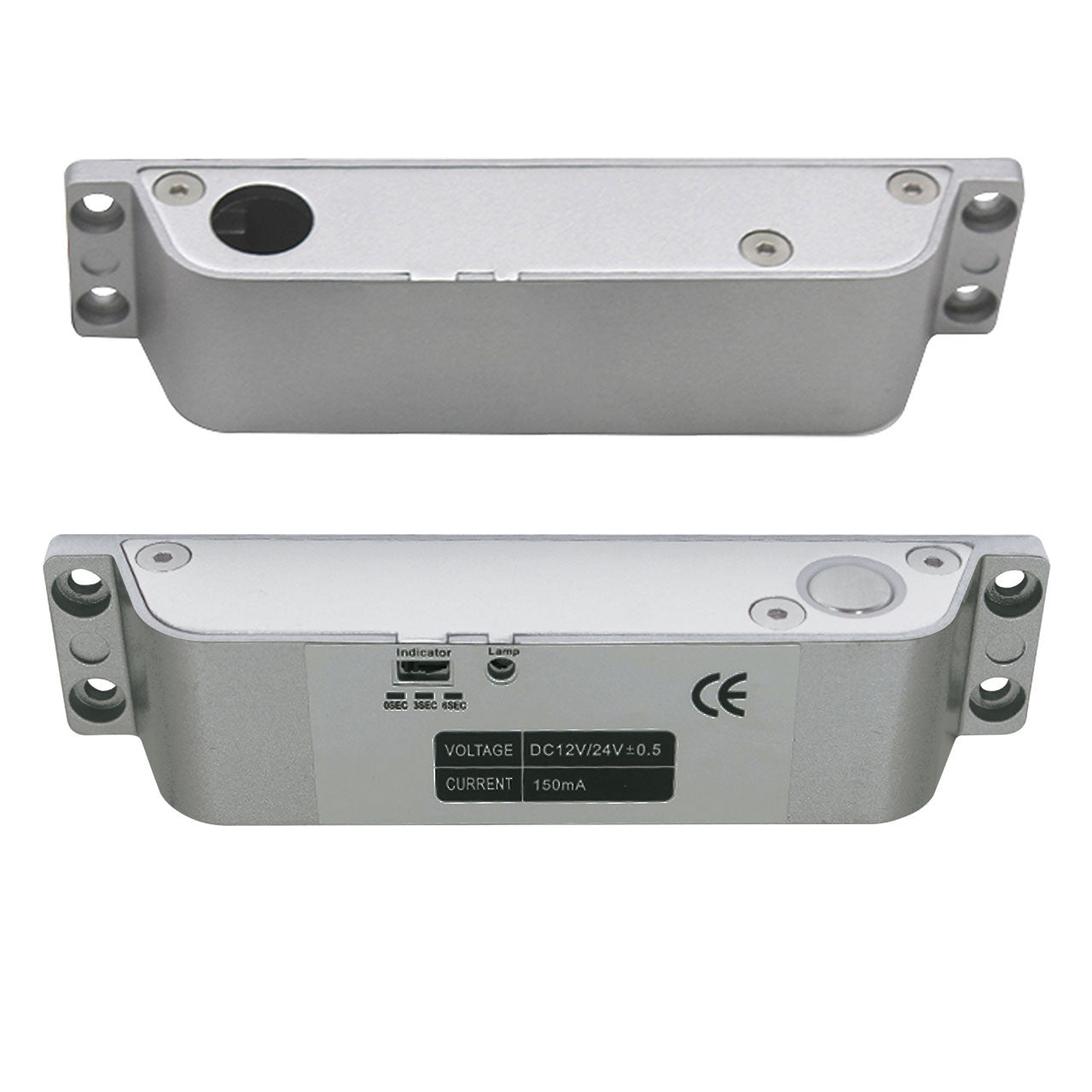

Electric Bolt - 12V DC 4 Wire - Surface Mount

Surface Mount Electric Bolt – Reliable Door Security

Adjustable Delay Timer (0, 3, or 6 seconds)

• 4-Wire Design with Status Relay Output
• Surface Mount Design for Easy Installation
• Lock Prevention When Door is Open
• LED Indicator for Power and Lock Status

The ACC516 is a versatile and feature-rich electric bolt lock, ideal for enhancing door security in residential or commercial settings.

Key Features:

• Status Relay Output: Connect to a buzzer, light, or even a CCTV system to trigger alerts or recordings when the door is opened.
• Adjustable Delay: Keep the door unlocked for up to 6 seconds after power restoration for convenient entry or exit.
• Smart Lock Prevention: Integrated reed switches ensure the bolt only engages when the door is properly closed, preventing accidental locking.
• LED Status Indicator: Provides a clear visual cue for power and lock status.

Flexible Access Control:

Pair the ACC516 with exit buttons or wireless key fobs to create tailored access solutions, such as:

• Push-to-exit buttons for staff to leave securely while restricting unauthorised entry.
• Keyless wireless entry for added convenience.

Installation Options:

• The ACC508 armoured door loop is recommended for double doors or installations requiring the bolt on the door itself, ensuring wires are securely protected.
• For a discreet alternative, consider the ACC514 Mortice Electric Bolt, designed for flush installations.

Enhanced Functionality with Handy Rascal Relays:

• HRM100 Relay: Maintains power cut while an exit button is pressed.
• HRM200 Relay: Adds a delay, keeping the door unlocked for up to 20 seconds.
• HRM250 Relay: Offers advanced timing options, including delayed activation and custom lock durations.

The ACC516 is a robust and reliable solution for securing your doors, offering peace of mind and flexible configuration for any access control needs.
